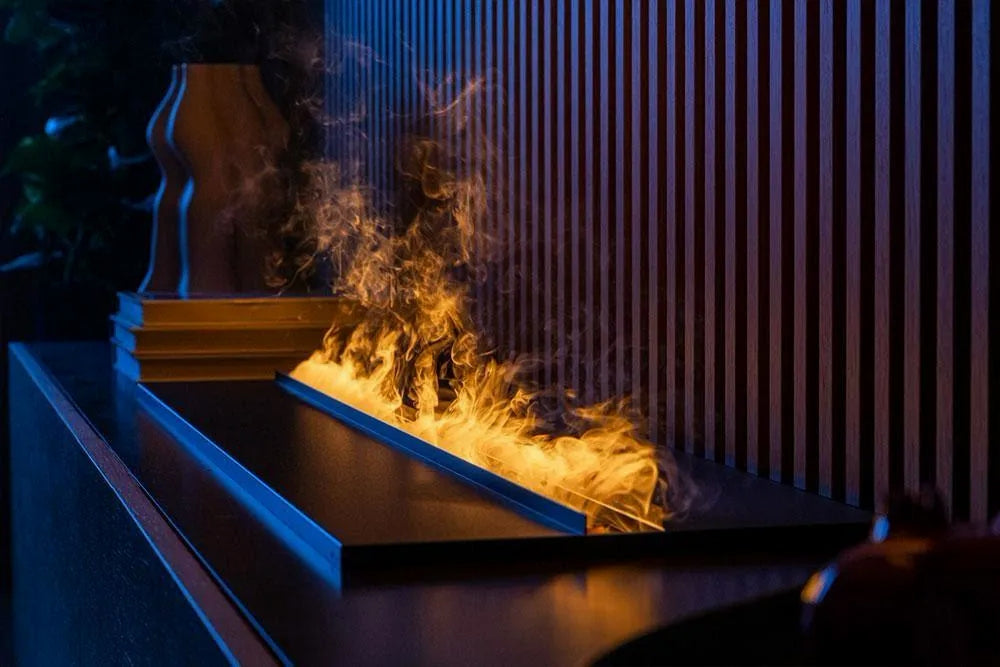

Dimplex Cassette 500 PRO RGB Multi Opti-Myst water vapor fireplace with water supply connection

Dimplex Cassette 500 Project RGB Multi Opti-Myst is a water vapor fireplace with realistic, volumetric 3D flame effects, with the option to connect to the water supply network.

This model belongs to the Project version, which means the electric fireplace connects to the water supply and refills automatically. Unlike the Retail version, this modification includes an automatic water filling system, and the Cassette 500 Pro does not come with manual filling tanks. The Dimplex Cassette 500 Pro RGB is ideal for commercial installations, where the electric fireplace needs to operate all day and monitoring water levels manually is impractical.

The Cassette 500 Pro RGB Multi is equipped with flame color selection, smartphone control, adjustable flame intensity, and a crackling wood sound effect.

Opti-Myst Electric Fireplaces

Dimplex Opti-Myst is a range of water vapor electric fireplaces by Dimplex, featuring an exclusive patented flame visualization technology.

The essence of this technology lies in LED illumination of finely atomized water vapor generated by an ultrasonic vaporizer. The produced vapor is at room temperature and completely safe for children and pets, making water vapor electric fireplaces an excellent alternative to bioethanol or wood fireplaces.

Additionally, Opti-Myst electric fireplaces improve the microclimate of a space, as they help humidify the air during operation.

Description of the Dimplex Cassette 500 Project RGB Multi Opti-Myst water vapor fireplace with water supply connection

Dimplex Cassette 500 Pro RGB Multi Opti-Myst belongs to the Multicolor series, whose main feature is the flame color changing function.

Users can select one of five predefined flame colors or enable automatic color rotation (Prism mode). Additionally, the fireplace is compatible with smartphone control via the Flame Connect mobile app.

With this app, it is possible to create virtually any flame color tone, perfectly matching the interior style and user preferences.

Flame divider accessory

The flame divider is included with the fireplace set. This accessory is installed in the vapor generator nozzle and allows the flame to split into multiple jets, creating a more expressive visual effect.

Flame effect in Dimplex Cassette 500 with flame divider and without divider

Its installation is very simple, requires no tools, and it can be easily removed at any time.

LED flame lighting

In Dimplex Cassette 500 Pro RGB Multi Opti-Myst water vapor fireplaces, modern LED light sources are used instead of halogen lamps.

LED lamps in the Dimplex Cassette 500 electric fireplace

This solution significantly reduces energy consumption while noticeably increasing the brightness and visual intensity of the flame effect.

Functions of the Dimplex Cassette 500 PRO RGB Multi Opti-Myst water vapor fireplace with water supply connection

Crackling wood sound effect

The fireplace is equipped with a realistic crackling wood sound effect, which complements the visual flame effect and enhances the sensation of a natural fire, creating a cozy atmosphere. This function works independently of the flame effect and can be activated according to the user’s preferences.

Flame intensity adjustment

The Dimplex Cassette 500 Pro allows users to adjust the flame intensity to suit different moods and settings. This feature enables creating a soft, subtle ambiance or a more expressive flame effect while maintaining a natural flame appearance.

Control of the Dimplex Cassette 500 Pro RGB Multi Opti-Myst

The Dimplex Cassette 500 Pro Multicolor water vapor fireplace comes with two control options: a wireless Bluetooth remote and a wired remote.

The wired remote can be installed either inside the fireplace or placed outside near it. It is important to note that the wired remote also acts as the Bluetooth receiver for the wireless remote, so it must always remain connected to the fireplace.

Additionally, the fireplace includes an integrated control panel on the unit itself, allowing basic adjustments to be made directly.

A distinctive feature of the Cassette 500 Pro RGB Multi Opti-Myst, compared to the monochromatic model Cassette 500 Pro Opti-Myst, is the ability to control it remotely via smartphone. To do this, it is necessary to download the Flame Connect app.

Thanks to the Flame Connect app, users have advanced options for configuring and controlling the fireplace functions (see the user manual).

Installation aspects of the Dimplex Cassette 500 PRO Opti-Myst electric fireplace

Water vapor electric fireplaces, unlike bioethanol fireplaces or traditional wood fireplaces, are completely fire-safe and do not heat up when operating in flame display mode only. Therefore, there are no restrictions on the material of the installation niche.

The Dimplex Cassette 500 PRO RGB Multi Opti-Myst can be installed in a niche, furniture unit, decorative structure, or other interior elements. The fireplace rests on height-adjustable feet, which facilitates proper leveling during installation. The unit’s weight without water is 8 kg.

For connection to the water supply, it is necessary to plan the piping to the fireplace in advance. The connection is made during the appliance installation and is detailed in the user manual.

During installation, it is essential to maintain a minimum distance of 40 cm between the fireplace and any element above it (shelves, TVs, or other obstacles) to avoid condensation formation. Additionally, the niche where the fireplace is installed must allow free air circulation. During flame display, the fireplace draws air from inside the niche and expels it into the room.

Installation examples of the Dimplex Cassette 500 electric fireplace

Technical specifications of the Dimplex Cassette 500 PRO RGB Multi Opti-Myst water vapor fireplace with water supply connection

• Model: Cassette 500 Pro RGB Multi Opti-Myst
• Series: Cassette Pro RGB Multi Opti-Myst
• Reference: Cassette 500Pro-RGB
• Water filling: automatic (with water supply connection)
• Dimensions (W×H×D), mm: 508 × 225 × 304
• Package dimensions (W×H×D), mm: 670 × 350 × 460
• Weight, kg: 8
• Weight with packaging, kg: 12
• Flame effect power, kW: 0.26
• Power supply, V: 220
• Flame effect: Opti-Myst
• Flame lighting: LED lights
• Crackling wood sound: yes
• Flame intensity adjustment: yes
• Flame color selection: yes
• Type of fireplace: built-in / cassette
• Control: remote control / wired remote / control panel / APP
• Warranty: 2 years
