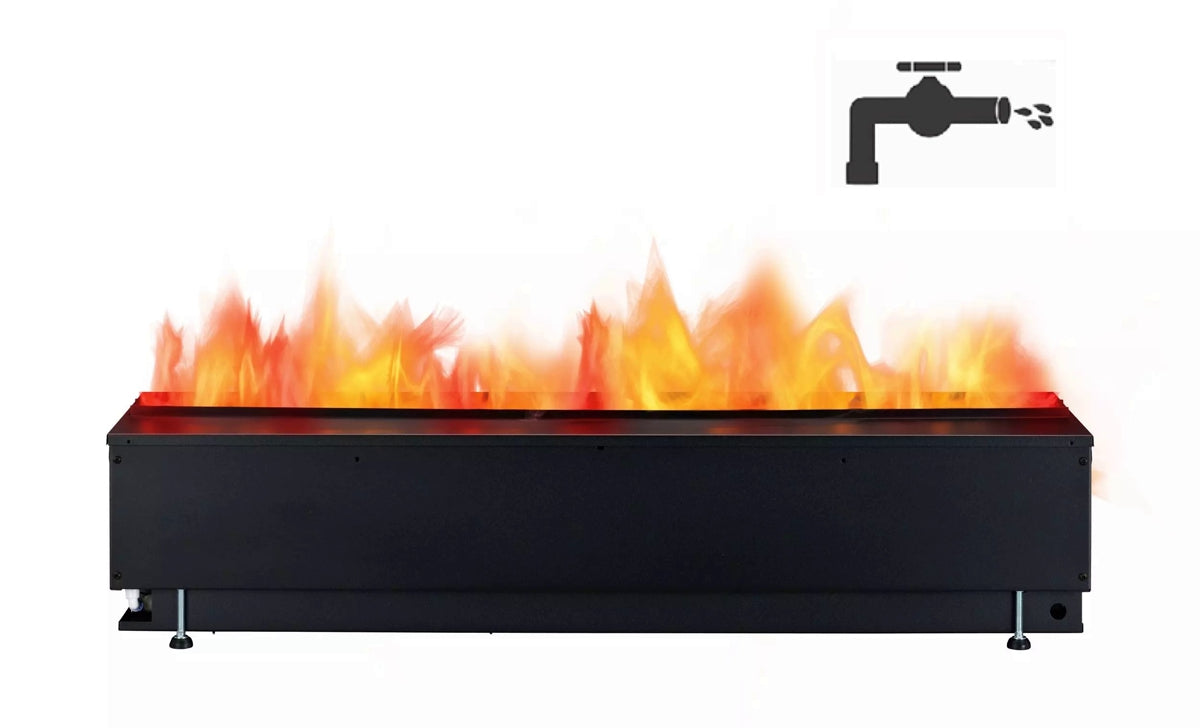

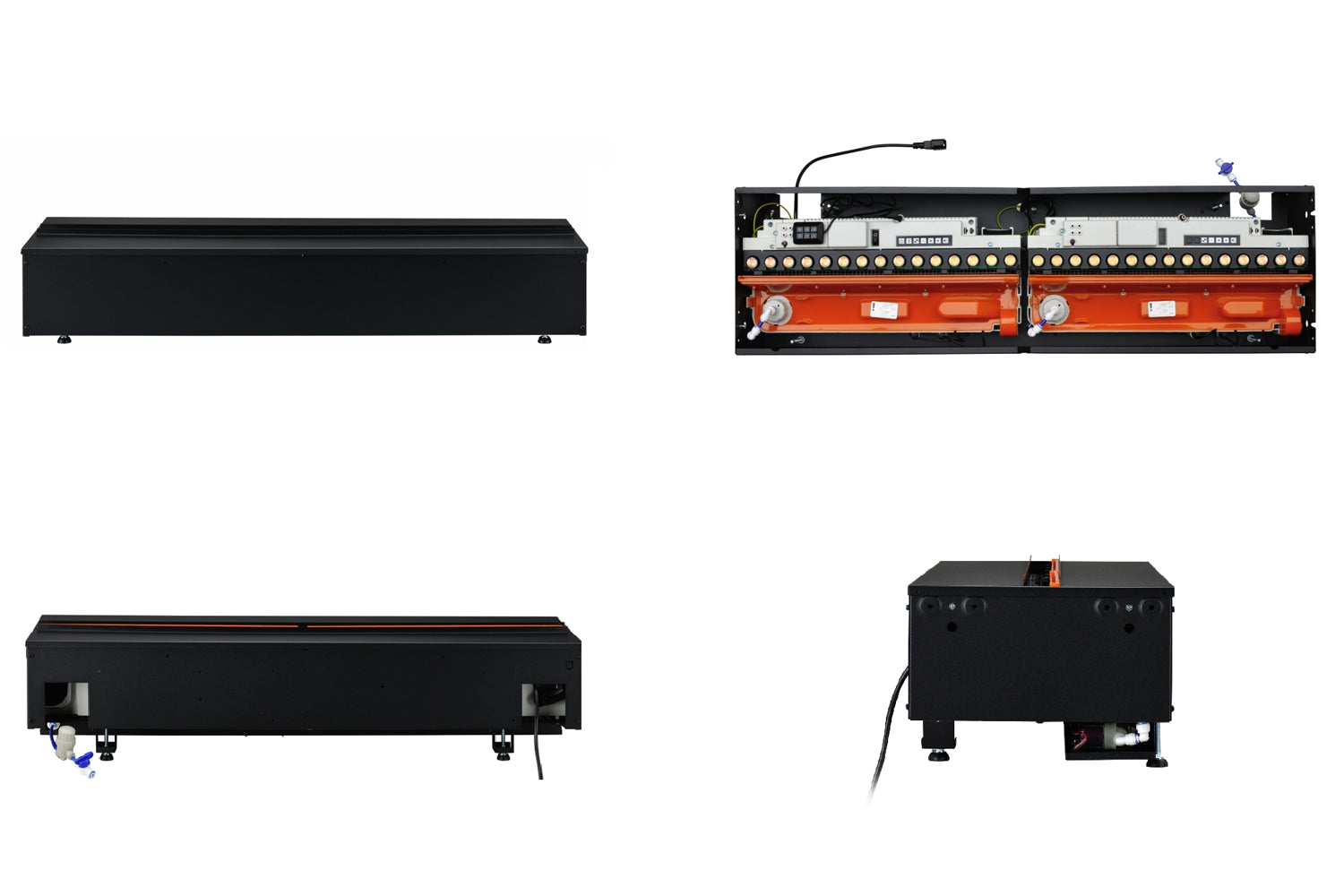

Dimplex Cassette 1000 PRO RGB Multi Opti-Myst water vapor electric fireplace with connection to the water supply

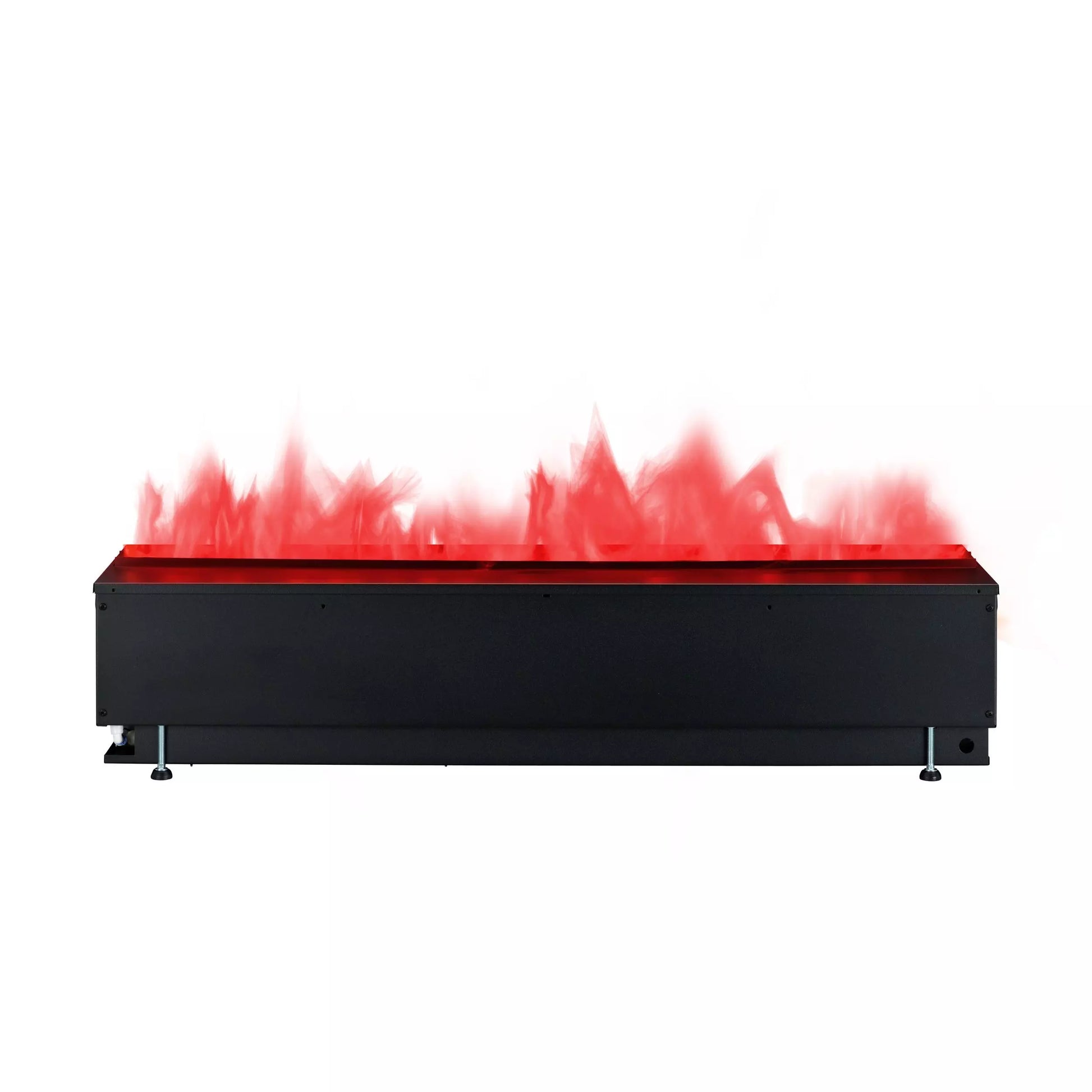

Dimplex Cassette 1000 Project RGB Multi Opti-Myst is a water vapor electric fireplace with realistic and volumetric 3D flame effect, with the possibility of connection to the water supply.

This model belongs to the Project version, which means that the electric fireplace connects to the water supply and fills automatically. Unlike the Retail version, this modification includes an automatic water filling system, and the Cassette 1000 Pro does not come with manual filling tanks. The Dimplex Cassette 1000 Pro RGB is ideal for commercial installations, where the electric fireplace needs to operate all day and monitoring the water level in the tanks is difficult.

The Cassette 1000 Pro RGB Multi is equipped with a flame color selection function, smartphone control, flame intensity adjustment, and a crackling wood sound effect.

Opti-Myst Electric Fireplaces

Dimplex Opti-Myst is a range of water vapor electric fireplaces from Dimplex, equipped with an exclusive and patented flame visualization technology.

The essence of this technology consists of illuminating finely atomized water vapor with LEDs, generated by an ultrasonic vaporizer. The produced vapor is at room temperature and completely safe for children and pets, making water vapor electric fireplaces an excellent alternative to bioethanol and wood fireplaces.

Additionally, Opti-Myst electric fireplaces improve the microclimate of the space, as they contribute to air humidification during operation.

Description of the water vapor electric fireplace with connection to the water supply Dimplex Cassette 1000 Project RGB Multi Opti-Myst

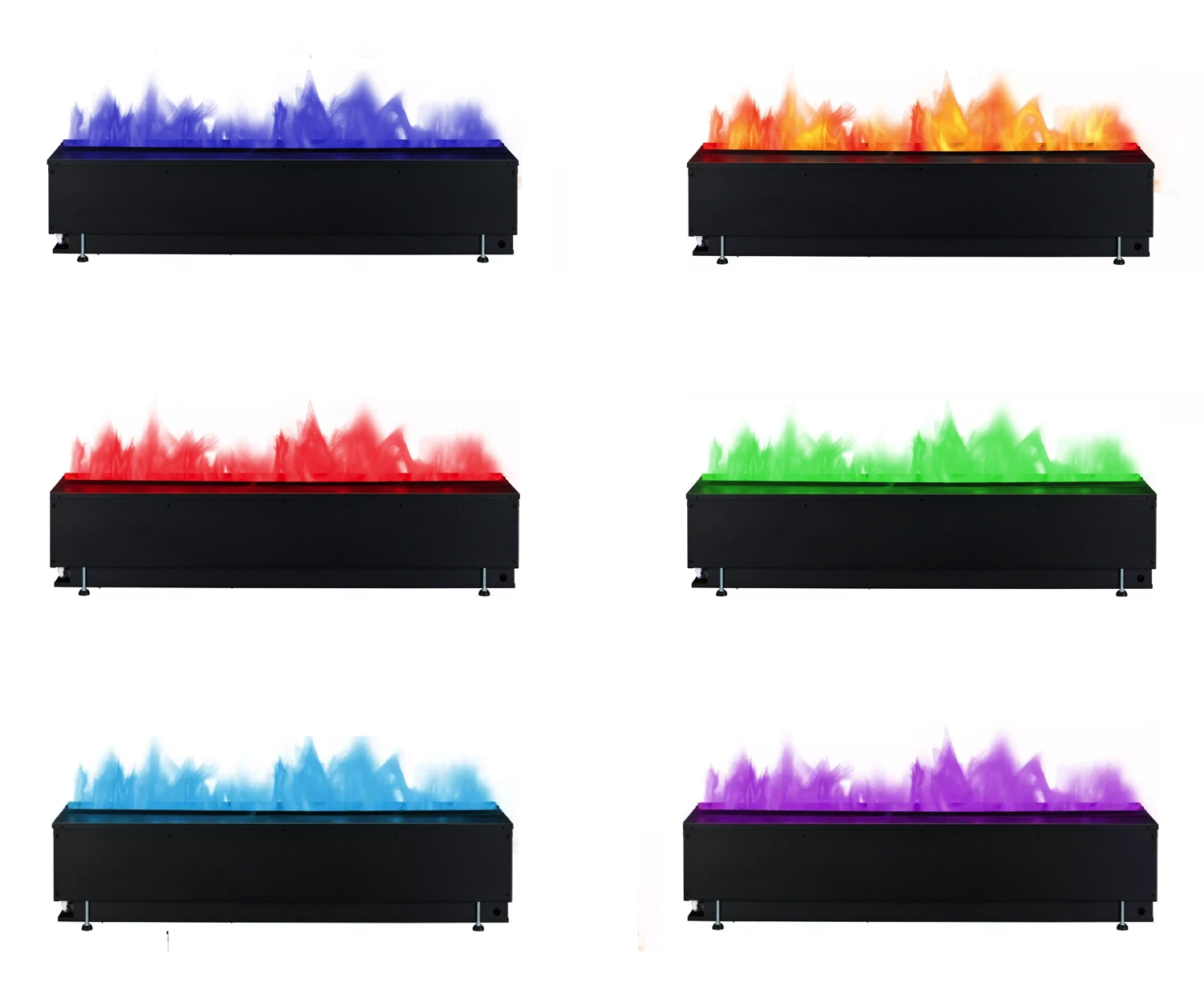

Dimplex Cassette 1000 Pro RGB Multi Opti-Myst belongs to the Multicolor series, whose main feature is the flame color changing function.

The user can select one of the five predefined flame colors or activate the automatic color rotation (Prism mode). In addition, the fireplace is compatible with smartphone control via the Flame Connect mobile app.

Thanks to this app, it is possible to create virtually any flame color tone, perfectly adapting it to the interior style and user preferences.

Flame Divider Accessory

The flame divider is included with the fireplace. It is an accessory that is installed on the vapor generator nozzle and allows the flame to be split into several streams, creating a more expressive visual effect.

Flame effect in Dimplex Cassette 1000 with and without flame divider

Its installation is very simple, requires no tools, and can be easily removed at any time.

LED Flame Lighting

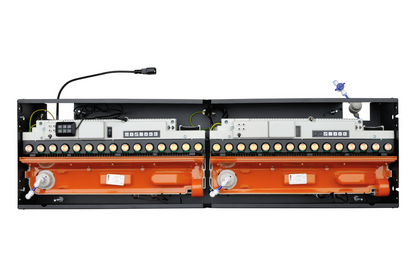

In water vapor electric fireplaces Dimplex Cassette 1000 Pro RGB Multi Opti-Myst, modern LED light sources are used instead of halogen lamps.

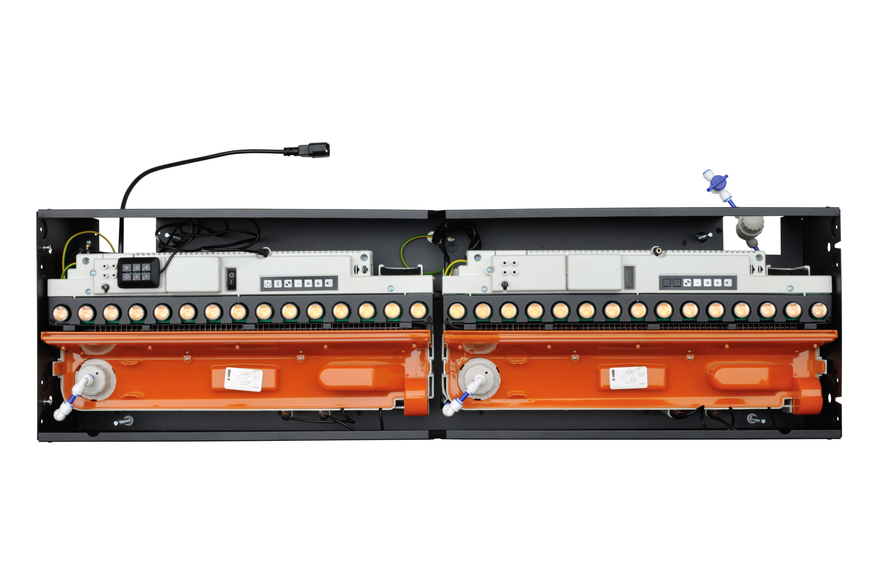

LED lamps in the Dimplex Cassette 1000 electric fireplace

This solution significantly reduces energy consumption while simultaneously increasing the brightness and visual intensity of the flame effect.

Functions of the water vapor electric fireplace with connection to the water supply Dimplex Cassette 1000 PRO RGB Multi Opti-Myst

Crackling wood sound effect

The fireplace is equipped with a realistic crackling wood sound effect that complements the visual flame effect and enhances the feeling of a natural fire, creating a cozy atmosphere. This function operates independently from the flame effect and can be activated according to user preference.

Flame intensity adjustment

The Dimplex Cassette 1000 Pro allows the user to adjust the flame intensity, adapting the visual effect to different environments and occasions. This function makes it easy to create a soft and subtle atmosphere or a more expressive one, while maintaining a natural flame appearance.

Control of the Dimplex Cassette 1000 Pro RGB Multi Opti-Myst

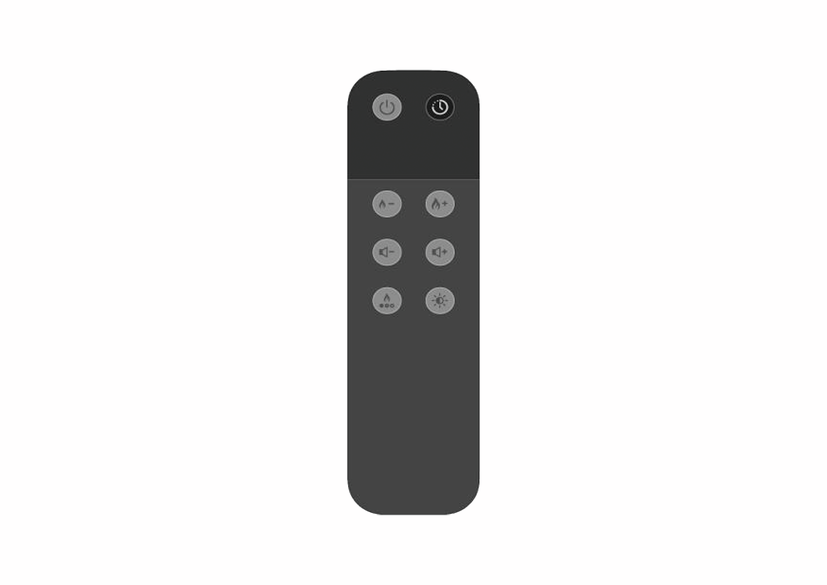

The Dimplex Cassette 1000 Pro Multicolor electric fireplace comes with two controllers: a Bluetooth wireless remote and a wired remote.

The wired remote can be installed inside the fireplace or placed outside, nearby. It is important to note that the wired remote also acts as the Bluetooth receiver for the wireless remote, so it must always remain connected to the fireplace.

Additionally, the fireplace includes a control panel integrated into the body of the unit, which allows for basic adjustments.

A distinctive feature of the Cassette 1000 Pro RGB Multi Opti-Myst, compared to the monochromatic model Cassette 1000 Pro Opti-Myst, is the possibility of remote control via smartphone. To do this, it is necessary to download the Flame Connect app.

Thanks to the Flame Connect app, the user has advanced options for configuring and controlling the fireplace functions (see the instruction manual).

Installation Aspects of the Dimplex Cassette 1000 PRO Opti-Myst Electric Fireplace

Water vapor electric fireplaces, unlike bioethanol fireplaces and traditional wood fireplaces, are completely fire-safe and do not heat up when operating only in flame display mode. Therefore, there are no restrictions regarding the installation niche material.

The Dimplex Cassette 1000 PRO RGB Multi Opti-Myst can be installed in a niche, furniture, decorative structure, or other interior elements. The fireplace rests on height-adjustable feet, which facilitates proper leveling during installation. The weight of the unit without water is 18 kg.

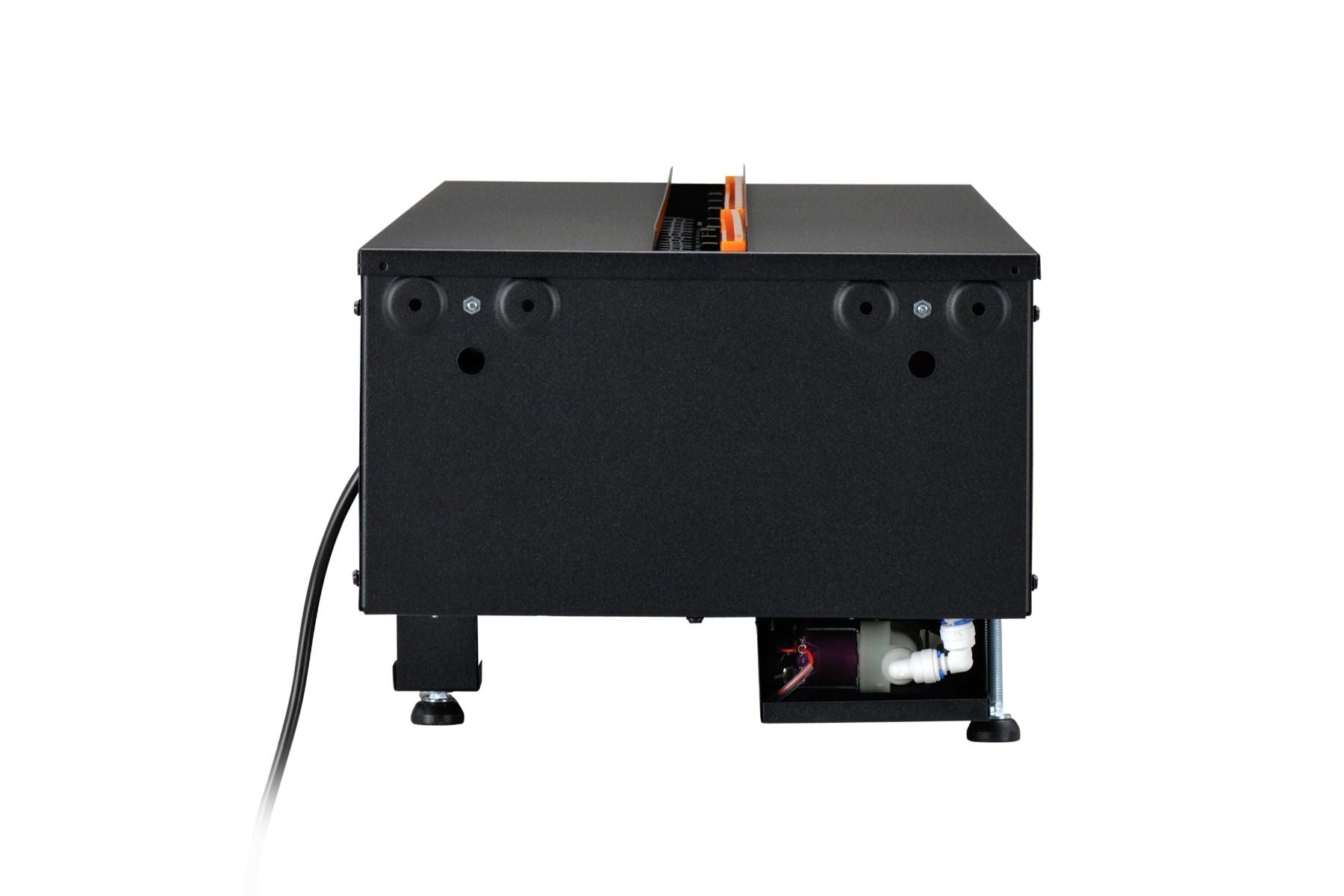

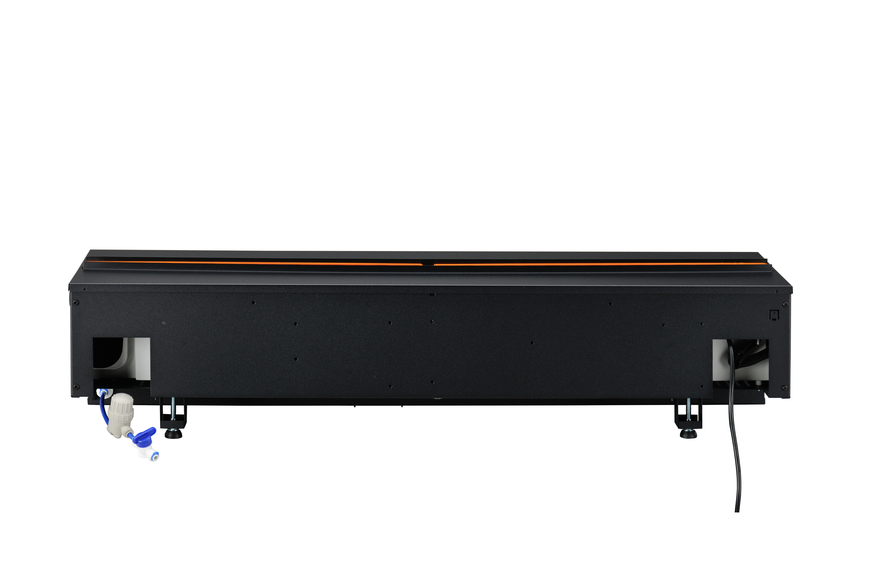

For connection to the water supply, it is necessary to plan the installation of pipes to the fireplace in advance. The connection is made during the installation of the appliance and is detailed in the instruction manual.

During installation, it is essential to maintain a minimum distance of 40 cm between the fireplace and any element above it (shelves, TVs, or other obstacles) to prevent condensation. In addition, the niche where the fireplace is installed must allow free air circulation. During flame display, the fireplace draws air from inside the niche and expels it into the room.

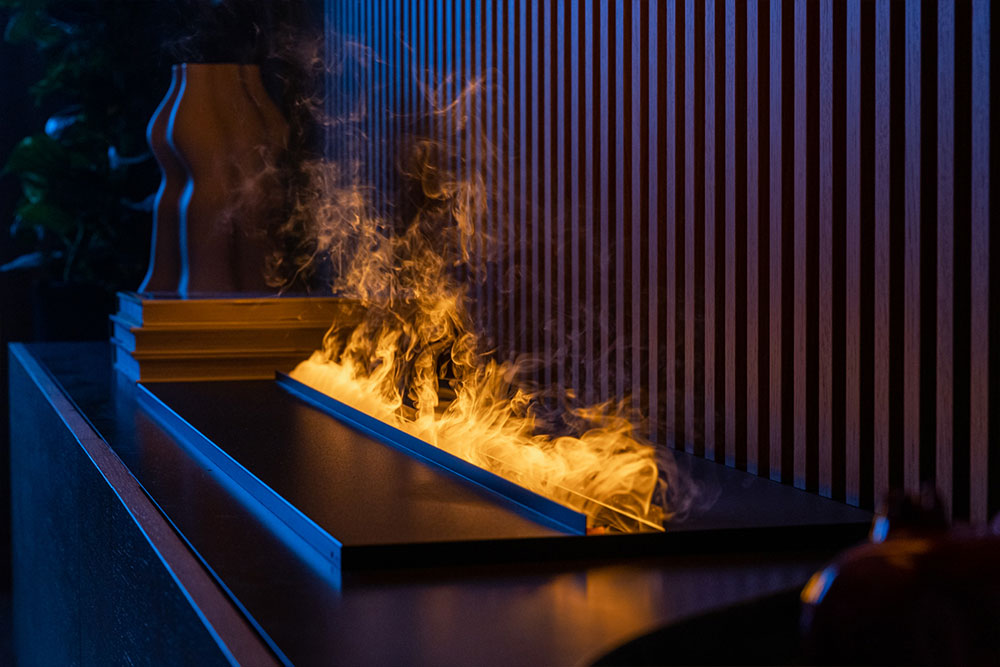

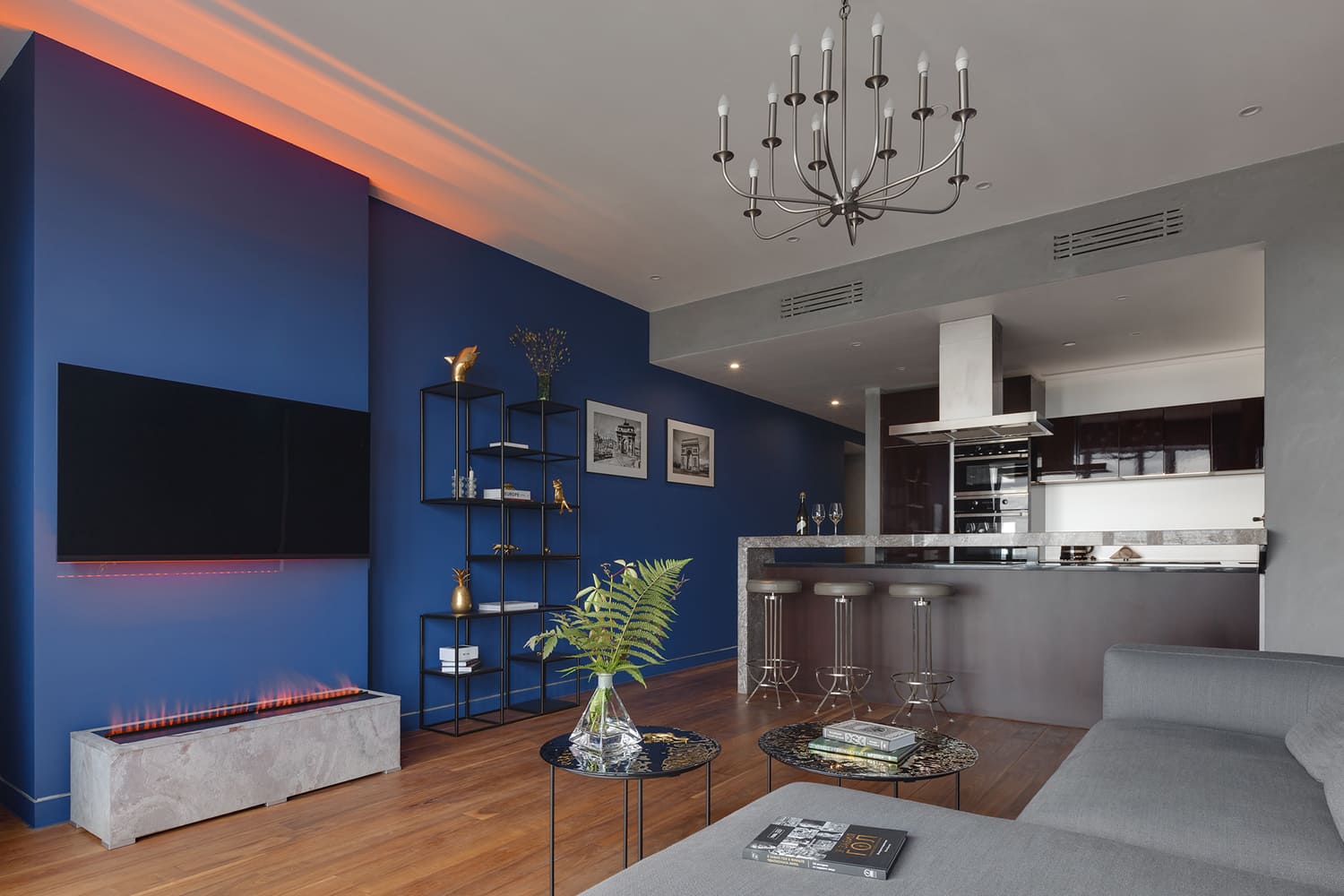

Installation examples of the Dimplex Cassette 1000 electric fireplace

Technical Specifications of the Water Vapor Electric Fireplace with Water Supply Connection Dimplex Cassette 1000 PRO RGB Multi Opti-Myst

• model: Cassette 1000 Pro RGB Multi Opti-Myst
• series: Cassette Pro RGB Multi Opti-Myst
• reference: Cassette 1000Pro-RGB
• water filling: automatic (with connection to the water supply)

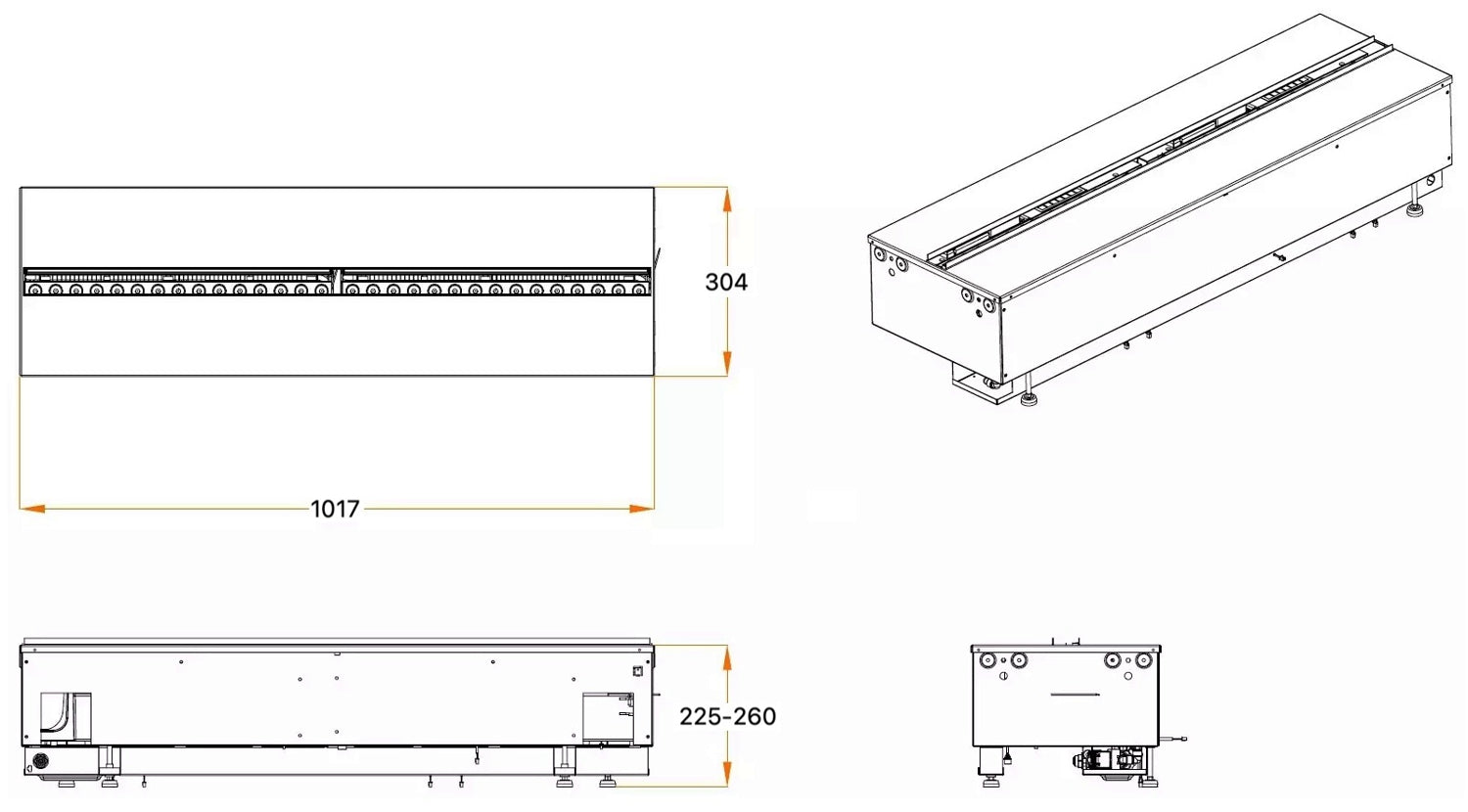

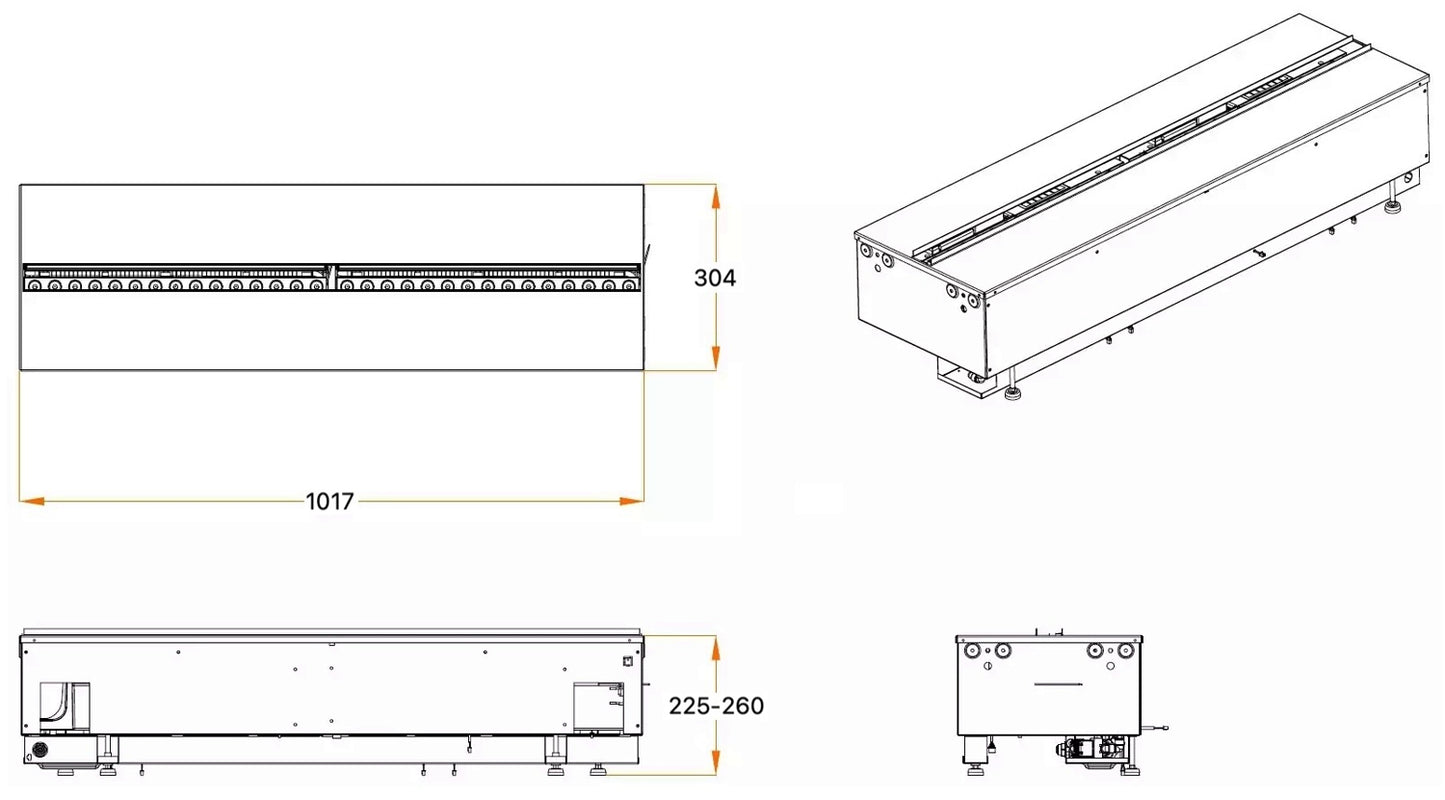

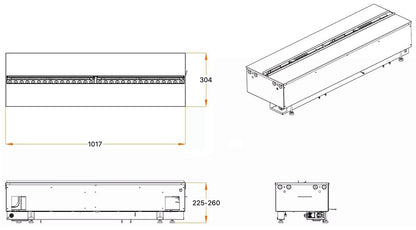

• dimensions (WxHxD), mm: 1017 x 225 x 304
• package dimensions (WxHxD), mm: 1180 x 350 x 460
• weight, kg: 18
• weight with packaging, kg: 22
• flame effect power, kW: 0.48
• power supply, V: 220
• flame effect: Opti-Myst
• flame illumination: LED lights
• crackling wood sound: yes
• flame intensity adjustment: yes
• flame color selection: yes
• fireplace type: built-in / cassette
• control: remote control / wired control / control panel / APP
• warranty: 2 years
